Rapidair Systems

Maxline 1/2in. Master Kit

From: $408.82

Nitto Female Coupler to Female BSP

Availability: In stock (can be backordered)

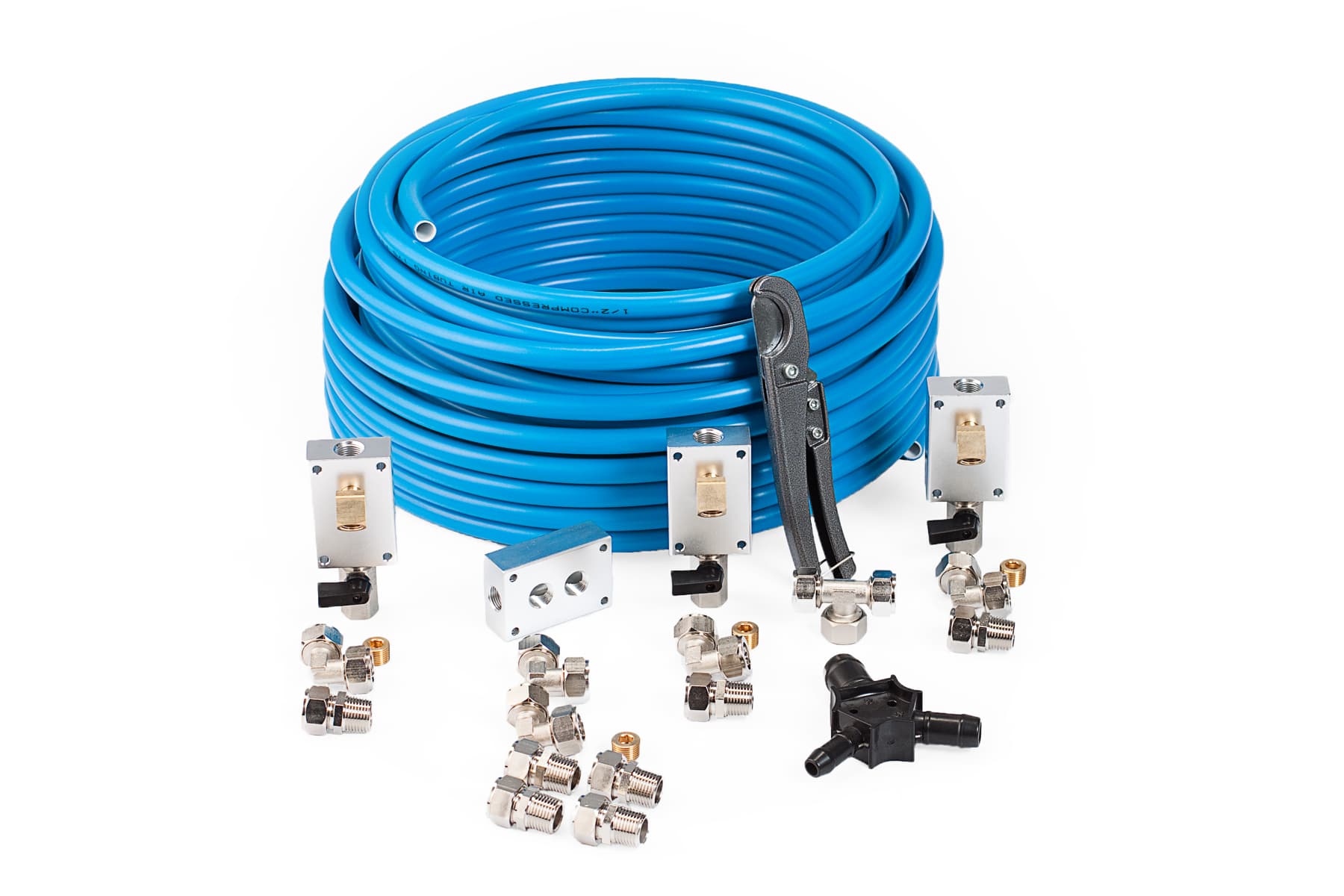

Maxline 1/2in. Master Kit x 30m 3 outlets.

Maxline 1/2″ Master kit with 30m of piping and 3 outlets.

MaxLine Semi-Flexible Compressed Air Tubing is designed for efficient installation in diverse settings, from small shops and farms to large manufacturing facilities. It delivers clean compressed air, inert gas and vacuum.

Kit Includes:

  • (1) M6026 30m 1/2” Maxline Tubing
  • (1) M38220 Manifold Block
  • (3) 90120 Outlet Blocks
  • (6) M8001 1/2” Tubing x 3/8” NPT fittings
  • (1) M8002 ½” Tubing x ½” NPT Fitting
  • (4) 50135 3/8” npt Plugs
  • (3) 50120 3/8” npt Drain Valves
  • (3) 50130 1/4” 45 Degree Brass Elbows
  • (1) M8010 Tee Fitting
  • (5) M8080 Elbow Fittings
  • (1) M8091 Cutter
  • (1) M8095 Bevel Tool

Use M8064 Wall Clips

Outlets have 1/4 Female npt ports

NOTE: Due to this being an American sourced product the fittings are all in NPT. As a courtesy we supply free of charge 1 x 3/8 BSP-NPT male-male and 3 x 1/4BSP-NPT male-male nipples to ensure you can adapt this system to readily available BSP fittings available throughout this region.

If you require Couplers for this kit you will require and 3 x 08-20SF Nitto Couplers in 1/4

Use Filter Regulator K93216 1/2 Ports

Need a Tap to turn off the air? Use  a 1/2″ Inline Valve M8038

Weight 9.18 kg
Dimensions 54 × 53 × 26 cm
Brand

Rapidair

Nitto Female Coupler to Female BSP

Weight N/A
Dimensions N/A
Thread Size

1/4 in. BSP
