Maxline 1/2 x 1/4 Single Port Outlet Kit

From: $58.45

Nitto Female Coupler to Female BSP

Availability: In stock (can be backordered)

Maxline 1/2 x 1/4 Single Port Outlet Kit

Use with the Maxline compressed air Piping system.

02-M3810 – 1/2″ Tubing Inlet x 1/4″ Female NPT Outlet

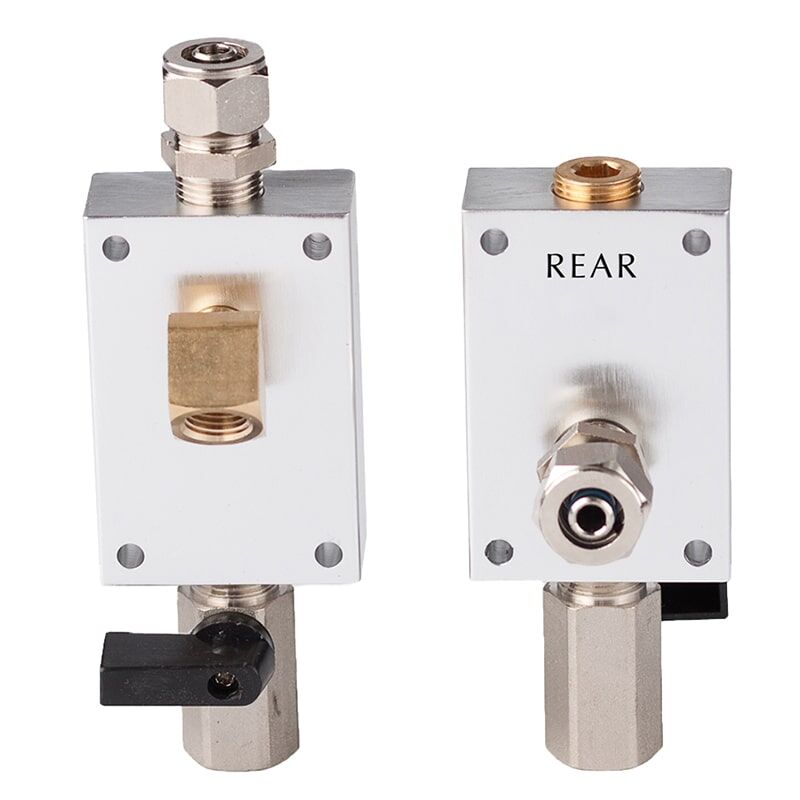

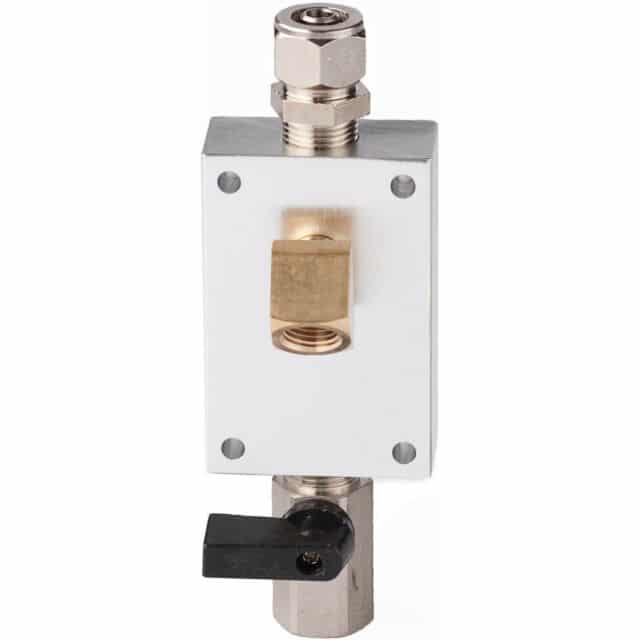

Air outlet kit, Includes moisture drain, plug, adapter and 45 degree fitting. Outlet port is 1/4 in. Female NPT. Use with Maxline 1/2 system. Dimensions of Alloy Block without any fittings are as follows: 53mm W x 80mm H x 25mm Deep. In wall tubing or surface mount tubing
Includes:
01-90120 – Aluminium Block
01-50120 – Drain Valve
06-50135 – Brass Plug
06-50130 – 45 Degree Brass Elbow
02-M8001 – 1/2″ Tubing Adaptor

Comes complete with an 01-50125 1/4″ BSP-NPT Male/Male Brass adapter.

Purchase the Nitto Coupler 08-20SF as a Bundle add on

Weight 0.48 kg
Dimensions 26 × 15 × 6 cm
Tubing Size

1/2" ID Tubing, 3/4" ID Tubing

Nitto Female Coupler to Female BSP

Weight N/A
Dimensions N/A
Thread Size

1/4 in. BSP
