Maxline 1 inch Master Kit 120 m

From: $2,740.40 Incl GST

Product Quantity

Maxline 1 Tubing 90 m

In stock

Maxline 3/4 Tubing 30 m

In stock (can be backordered)

Maxline 3/4 Single Port Outlet Kit

In stock (can be backordered)

Maxline 3/4 Dual Port Outlet Kit

Maxline 1 90 Degree Elbow

In stock (can be backordered)

Maxline 1 x 3/4 Reducing Union

In stock (can be backordered)

Maxline 1 inch Equal Tee

In stock (can be backordered)

Maxline 1 x 3/4 Reducing Tee

In stock (can be backordered)

Maxline 1 Tubing x 1 Male NPT

In stock (can be backordered)

Maxline 3/4 Pipe Clip

In stock (can be backordered)

Maxline 1 Pipe Clip

In stock (can be backordered)

Nitto Female Cupla Socket to BSP Male

Maxline 1 Inline Hand Valve

Rapidair Filter Regulator with Gauge

Compressor 1 inch Jumper Hose

Retractable Air Hose Reel 10x20

Retractable Air Hose Reel 12x15

Description

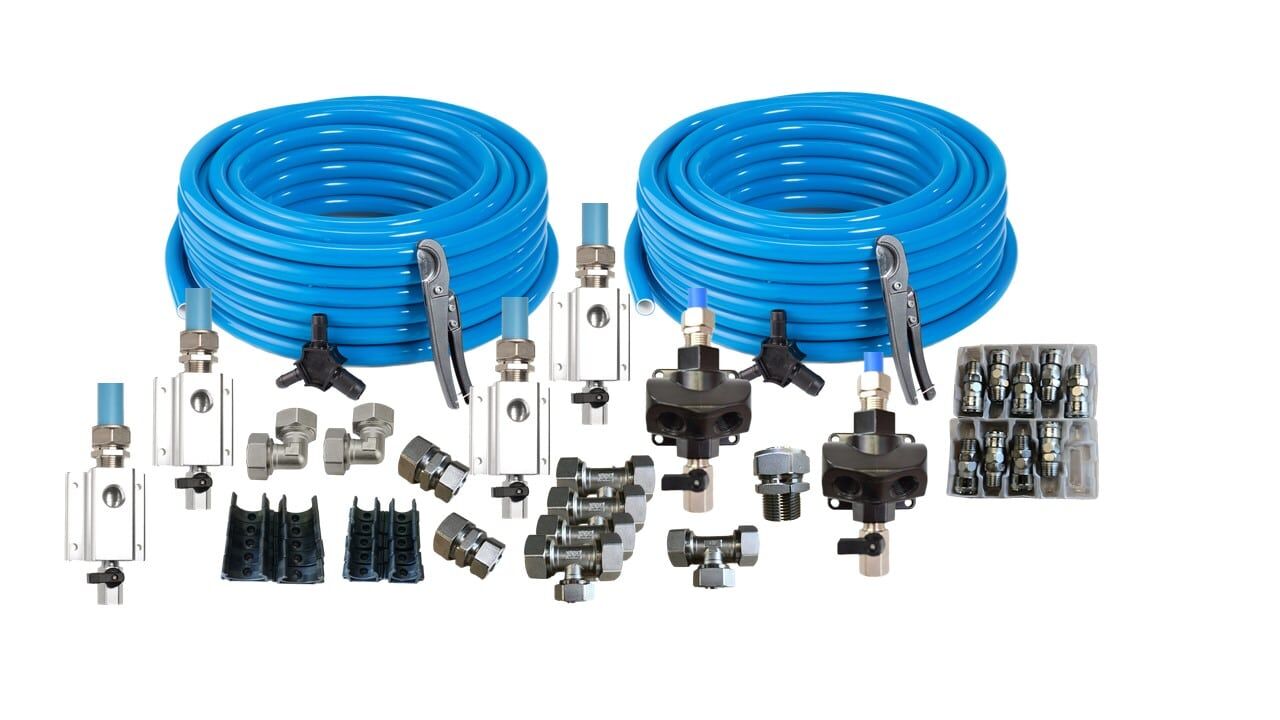

Maxline 1 inch Master Kit 120 m

The Maxline compressed air piping kit for bigger airflows and capacity. High quality simple assembly piping system for your Commercial Workshop, spray paint booth, garage or shed. If you need higher airflow or have multiple compressed air users, this is the kit you need.

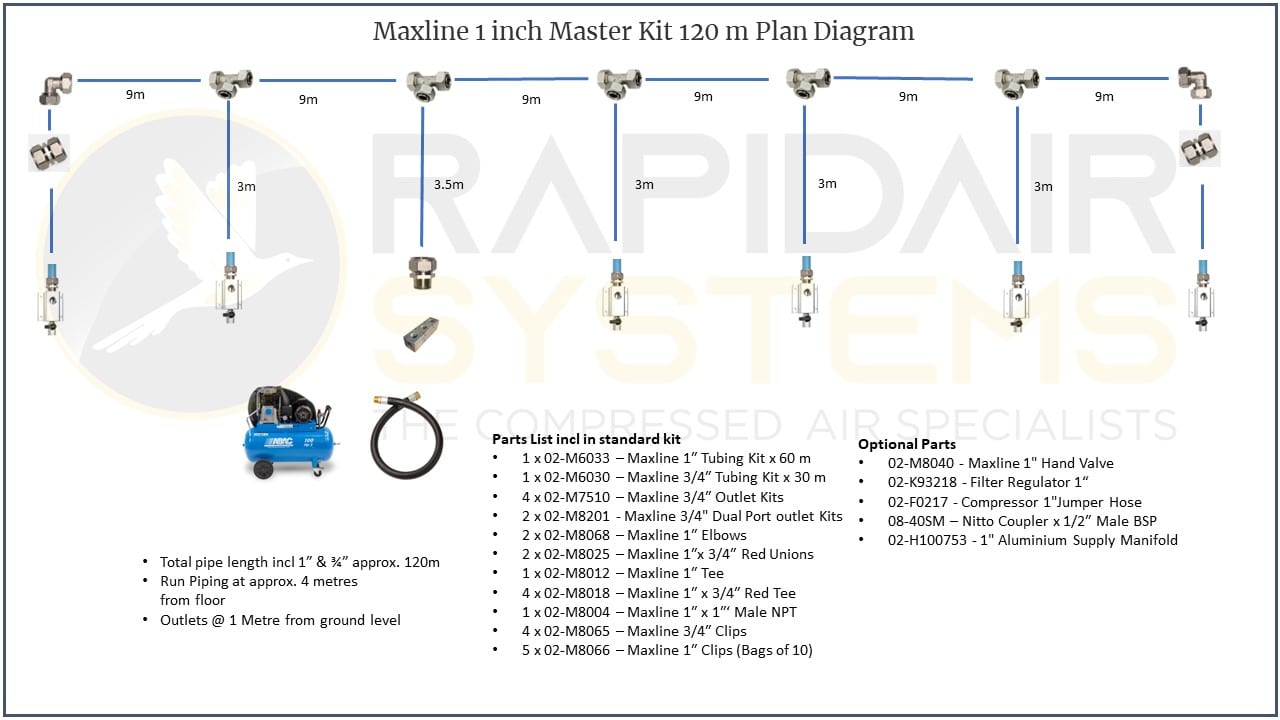

The Maxline 1 inch Master Kit 120 m comes complete with the following parts;

  • 1 x 02-M6033 – Maxline 1″ Tubing Kit x 90 m
  • 1 x 02-M6030 – Maxline 3/4″ Tubing Kit x 30 m
  • 4 x 02-M7510 – Maxline 3/4″ Outlet Kits
  • 2 x 02-M8201 – Maxline 3/4″ Dual Port outlet Kits
  • 2 x 02-M8068 – Maxline 1″ Elbows
  • 2 x 02-M8025 – Maxline 1″x 3/4″ Red Unions
  • 1 x 02-M8012 – Maxline 1″ Tee
  • 4 x 02-M8018 – Maxline 1″ x 3/4″ Red Tee
  • 1 x 02-M8004 – Maxline 1″ x 1″‘ Male NPT
  • 4 x 02-M8065 – Maxline 3/4″ Clips (Pkt of 10 Clips)
  • 5 x 02-M8066 – Maxline 1″ Clips (Pkt of 10 Clips)
    Optional as follows;
  • 8 x 08-40SM – Nitto Coupler x 1/2″ Male BSP
  • 1 x 02-M8040 – Maxline 1″ Hand Valve
  • 1 x 02-K93218 – Filter Regulator 1″
  • 1 x 02-F0217 – Compressor 1″Jumper Hose
  • 1 x 02-H100753 1″ Aluminium Manifold Block

Notes:

  1. If ordering the optional Filter Regulator, please ensure you increase the quantities of the 02-M8004 Maxline 1″ x 1″ Male NPT Adapters by an additional 2 as these are needed to screw into the Filter Regulator
  2. Quantities of all products can be changed at the shopping cart stage. Please note that the items in the kit have a discount applied so it is cheaper to add the kit and then change quantities in the shopping cart to retain the discount
  3. We recommend the use of the STRAIGHTENING TOOL for the 1″ Pipe to ensure a professional look. This can be purchased and returned for a partial credit along with the PIPE BENDER HERE

Additional information

Maxline 1 Tubing 90 m

Weight 32.5 kg
Dimensions 98 × 98 × 23.5 cm
Tubing Size

1" ID Tubing, 3/4" ID Tubing

Maxline 3/4 Tubing 30 m

Weight 8 kg
Dimensions 53 × 53 × 35 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 3/4 Single Port Outlet Kit

Weight 0.5 kg
Dimensions 20 × 20 × 15 cm

Maxline 3/4 Dual Port Outlet Kit

Weight 0.74 kg
Dimensions 17 × 13 × 13 cm
Tubing Size

1/2" ID Tubing, 3/4" ID Tubing

Maxline 1 90 Degree Elbow

Weight 0.3 kg
Dimensions 16 × 12 × 8 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 1 x 3/4 Reducing Union

Weight 0.25 kg
Dimensions 19 × 16 × 8 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 1 inch Equal Tee

Weight 0.5 kg
Dimensions 16 × 16 × 4 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 1 x 3/4 Reducing Tee

Weight 0.12 kg
Dimensions 15 × 10 × 7 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 1 Tubing x 1 Male NPT

Weight 0.12 kg
Dimensions 10 × 9 × 5 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 3/4 Pipe Clip

Weight 0.04 kg
Dimensions 20 × 15 × 8 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Maxline 1 Pipe Clip

Weight 0.04 kg
Dimensions 20 × 15 × 8 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Nitto Female Cupla Socket to BSP Male

Weight N/A
Dimensions N/A
Thread Size

1/2 in. BSP

Maxline 1 Inline Hand Valve

Weight 0.5 kg
Dimensions 20 × 10 × 12 cm
Tubing Size

1" ID Tubing, 1/2" ID Tubing, 3/4" ID Tubing

Rapidair Filter Regulator with Gauge

Weight .7 kg
Dimensions 24 × 7 × 7 cm
Thread Size

1 in. NPT

Compressor 1 inch Jumper Hose

Weight 0.9 kg
Dimensions 31 × 31 × 10 cm
Thread Size

1 in. NPT, 1/2 in. NPT, 3/4 in. NPT

Retractable Air Hose Reel 10x20

Weight 10.20 kg
Dimensions 53 × 48 × 30 cm
Hose Size

3/8in. or 9.5mm

Retractable Air Hose Reel 12x15

Weight 10.2 kg
Dimensions 53 × 48 × 30 cm
Hose Size

1/2in. or 12.5mm
