Aluminium Manifold 3/4 inch

From: $159.18

Brass Plug 3/4 BSP

Brass Hex Reducing Bush

Nitto Female Cupla Socket to BSP Male

Availability: In stock (can be backordered)

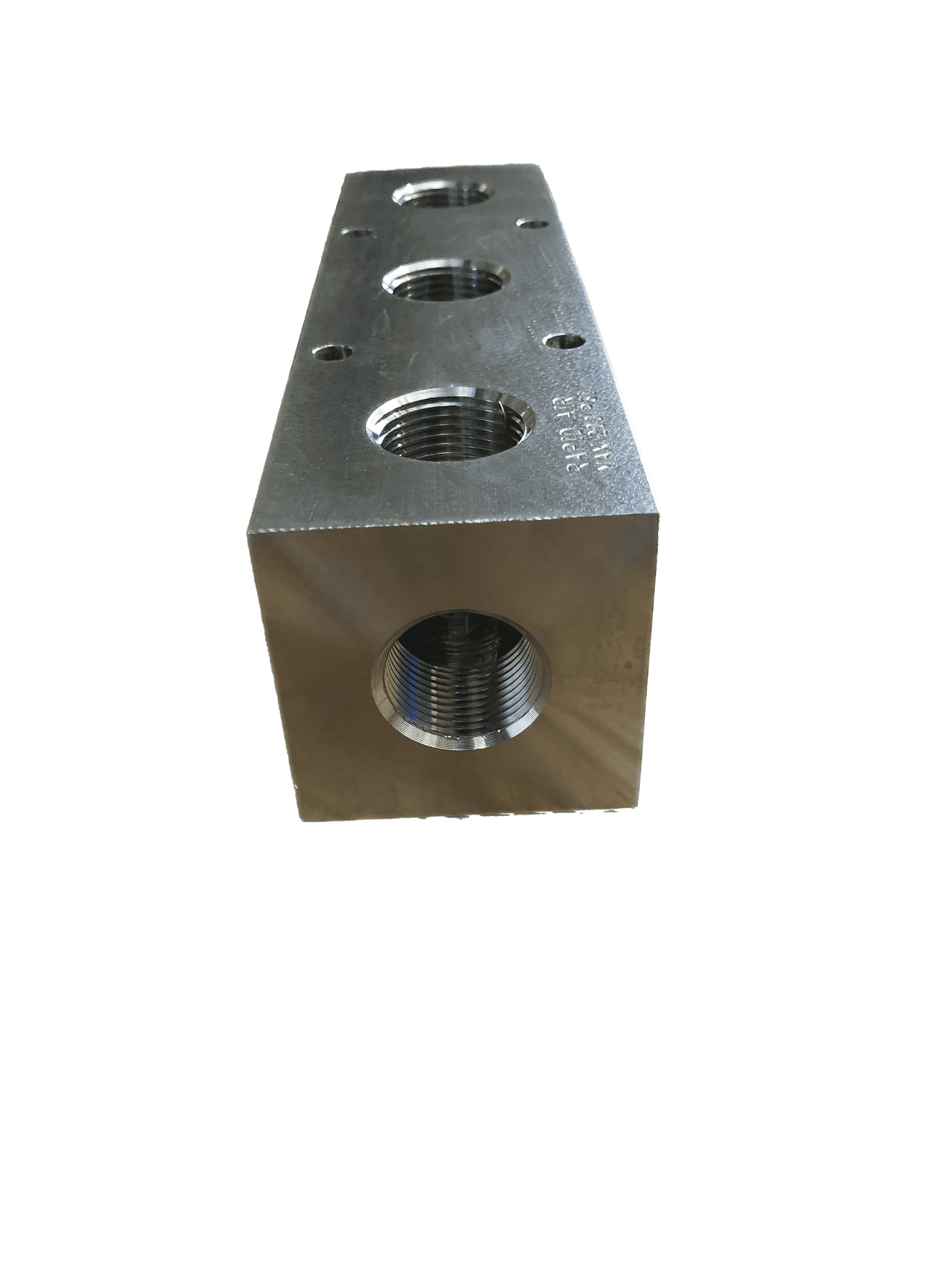

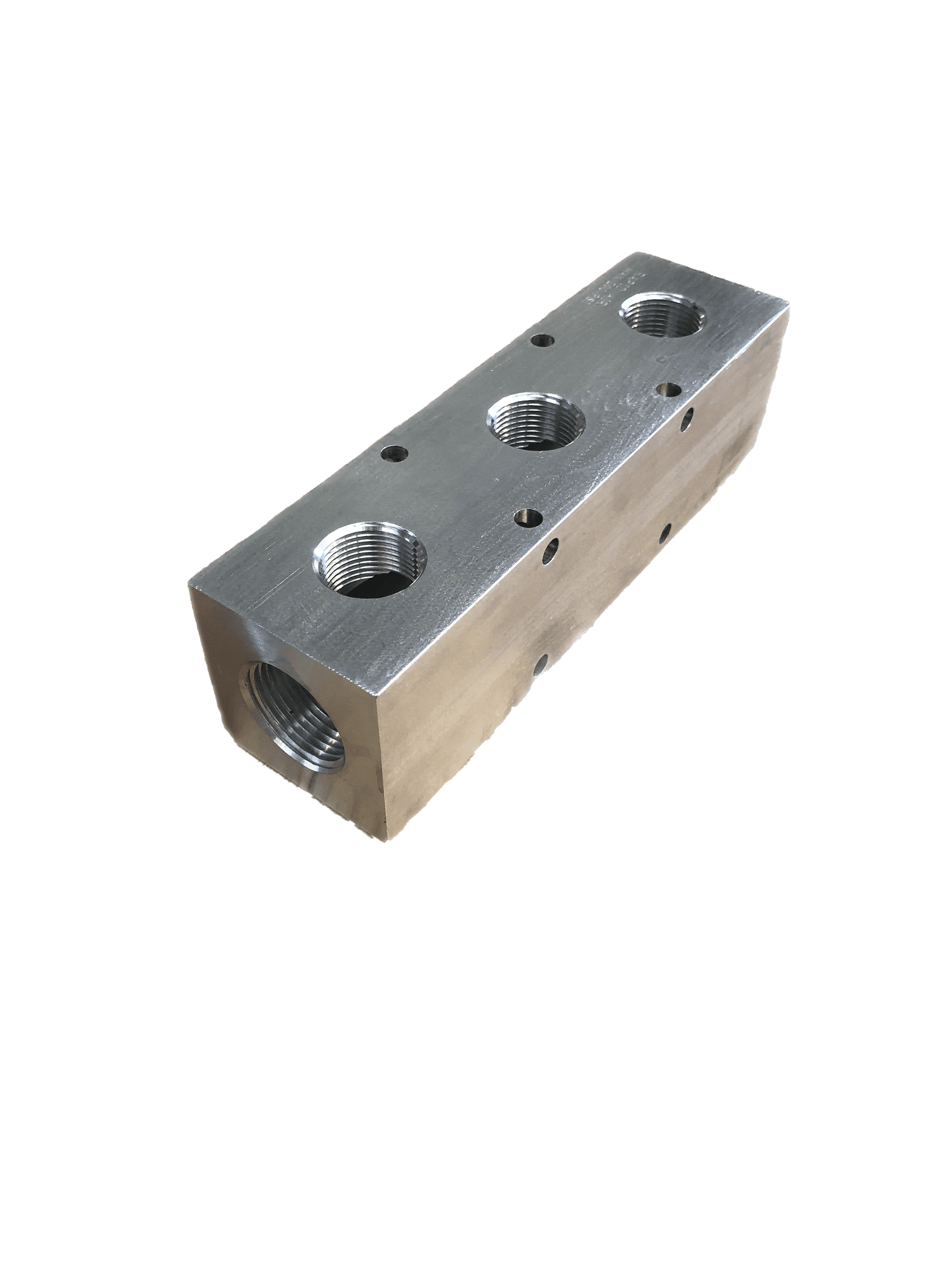

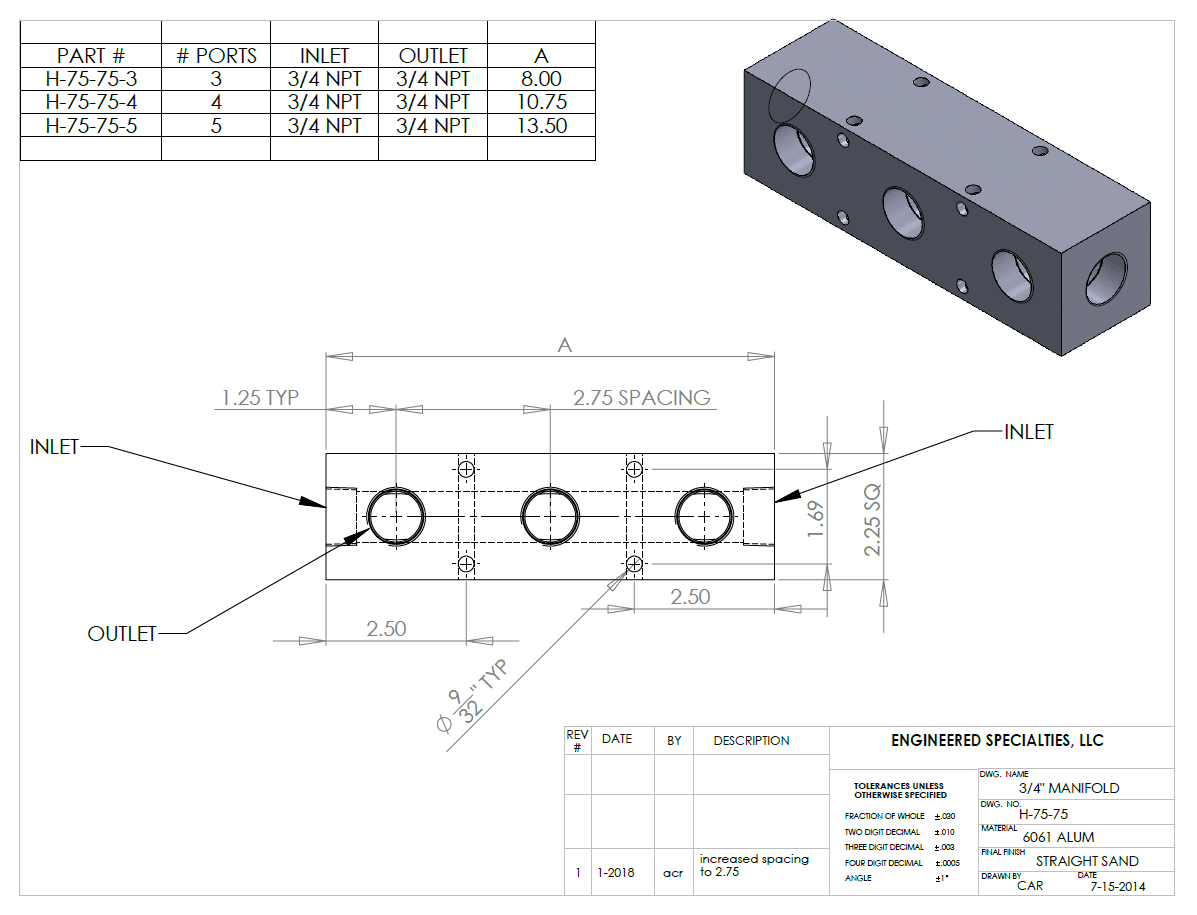

Aluminium Manifold 3/4 inch

Use as an additional outlet OR Inlet manifold.

3/4″NPT Fem inlets at both ends with 3 x 3/4″NPT Outlets on the face.
4 x 7mm Mounting holes on both faces

Use with the Flexible Compressor hose as a secure inlet point to run your Maxline Piping system from.

Blank off the spare ports with our Brass Bungs Here

Weight 1.35 kg
Dimensions 21 × 6 × 6 cm
Thread Size

3/4 in. NPT

Brass Plug 3/4 BSP

Weight 0.1 kg
Dimensions 5 × 5 × 2 cm
Thread Size

3/4 in. BSP

Brass Hex Reducing Bush

Weight 0.02 kg
Dimensions 10 × 5 × 5 cm
Brass Reducer

1/2" x 1/4", 1/2" x 3/8", 3/4" x 1/2", 1" x 1/2", 1" x 3/4", 1-1/2" x 3/4", 1-1/2" x 1", 2" x 3/4", 2" x 1"

Nitto Female Cupla Socket to BSP Male

Weight N/A
Dimensions N/A
Thread Size

1/2 in. BSP
